• 18" x 7.5" satin silver painted aluminum wheels
• P255/70R18 on/off-road OWL tires
• Full size spare tire
• Matching spare wheel
• Outside tire carrier
• Easy folding soft top
• Sunrider soft top feature
• Black/silver front bumper
• Black/silver rear bumper
• Body color fender flares
• Tubular side steps
• Body color grille
• Halogen headlamps
• Fog lamps
• Tinted windshield glass
• Deep-tint sunscreen windows
• Swing-away mirrors
• Variable intermittent windshield wipers
• Hood insulation

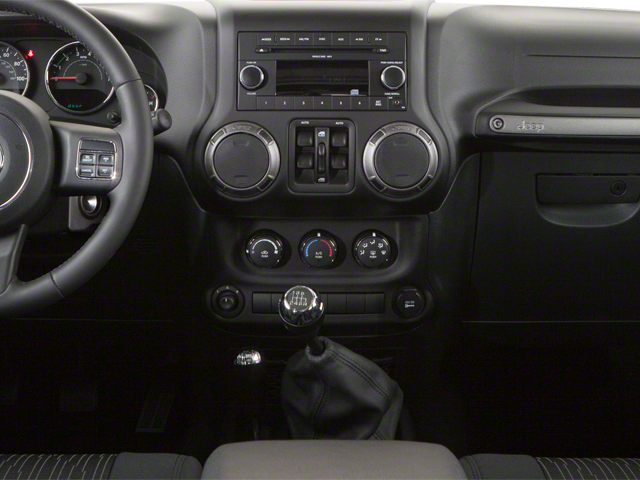

• Media center 130 -inc: AM/FM stereo, CD/MP3 player
• (6) Infinity speakers w/subwoofer
• Audio input jack
• SIRIUS satellite radio -inc: 1-year subscription *N/A in Hawaii or Puerto Rico*

• Cloth seat trim

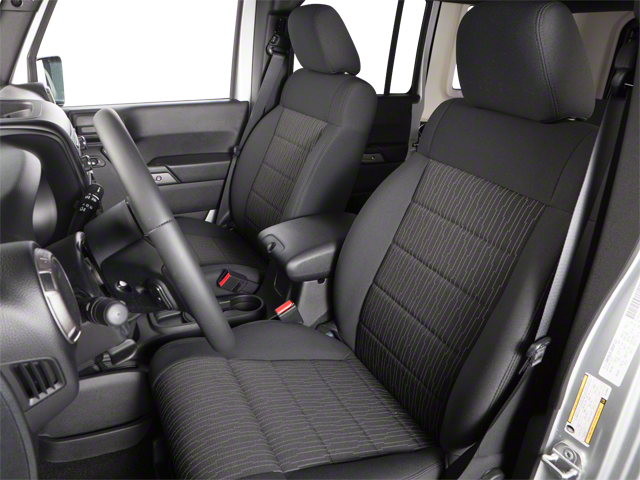

• Low back bucket seats
• Reclining front seats
• Driver height adjustment

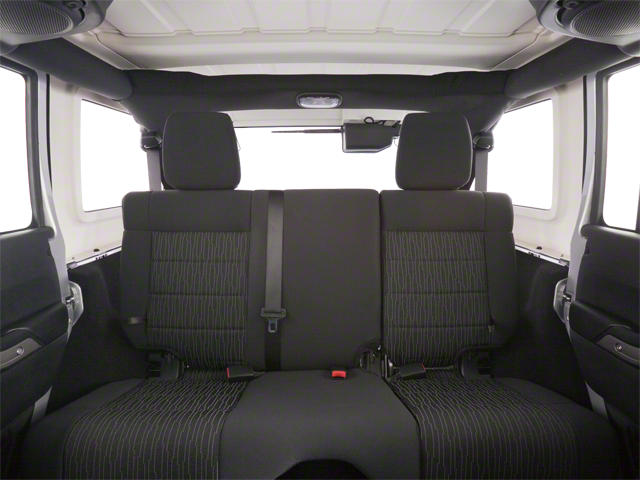

• 60/40 folding rear seat
• Rear seat outboard head restraints
• Full length floor console
• Front seat area carpet
• Rear/cargo area carpet
• Front & rear floor mats
• Tilt steering column

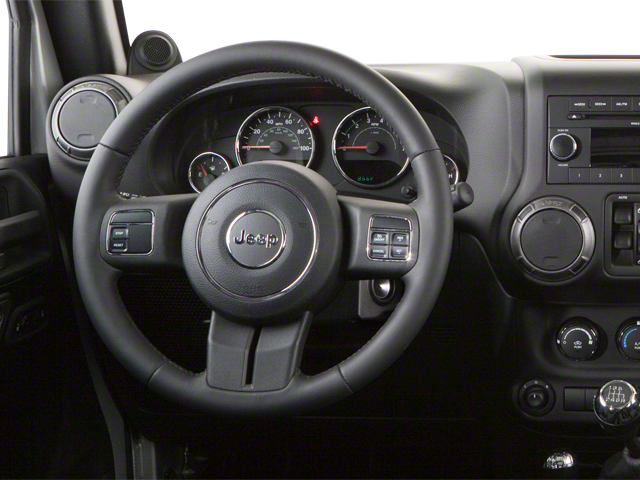

• Leather-wrapped steering wheel w/bright spokes

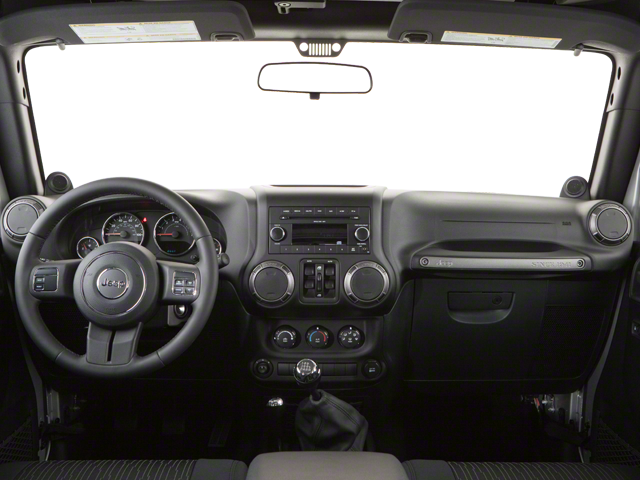

• Premium instrumentation w/tachometer
• Outside temp & compass gauge

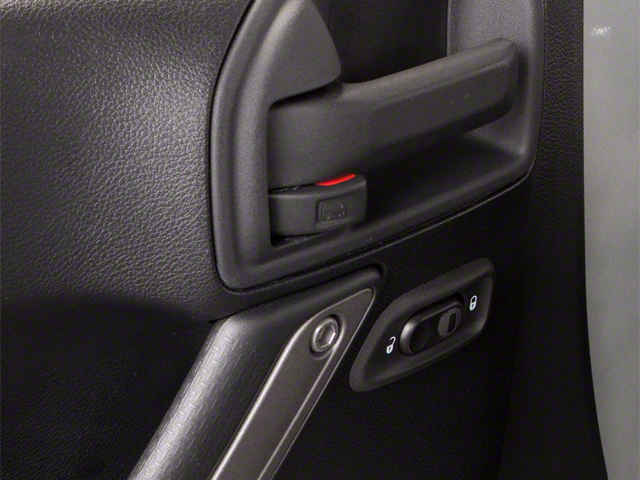

• Pwr door locks
• Pwr windows w/driver & front-passenger one-touch down
• Remote keyless entry
• Speed control
• Sentry Key theft deterrent system
• Security alarm
• Air conditioning
• Aux 12V pwr outlet
• Bright interior accents
• Sport bar w/full padding
• Sliding sunvisors w/mirrors
• Rear passenger assist handle kit
• Front seatback map pockets
• Front dome light w/on/off switch
• Rear dome light w/on/off switch
• Cargo compartment covered storage
• Cargo tie down loops

• 4-wheel anti-lock brakes
• Electronic stability program
• Electronic roll mitigation
• Traction control
• Driver & front passenger advanced multi-stage frontal airbags
• Child safety rear door locks
• Tire pressure monitoring warning lamp

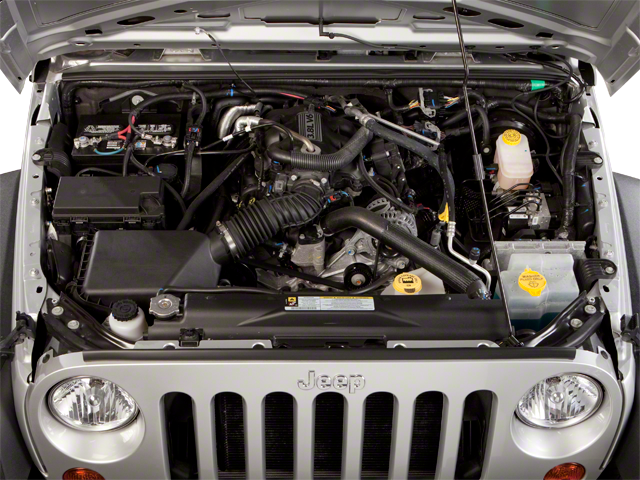

3.8L OHV 12-VALVE SMPI V6 ENGINE

• (STD)

• AHT
• CJ1
• DGV
• DSA
• EGT
• REQ
• VKX
• XBM

• Vehicle
• EPA Classification: 4WD Sport Utility Vehicles
• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 140
• Cooling System
• Total Cooling System Capacity (qts): 13.4
• Weight Information
• Base Curb Weight (lbs): 4269
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 100
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 150
• Suspension
• Suspension Type - Front: Live Axle
• Suspension Type - Rear: Live Axle
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.9 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 12.4 x 0.5
• Tires
• Front Tire Order Code: TT6
• Rear Tire Order Code: TT6
• Spare Tire Order Code: TBB
• Front Tire Size: P255/70R18
• Rear Tire Size: P255/70R18
• Spare Tire Size: P255/70R18
• Wheels
• Front Wheel Size (in): 18 x 7.5
• Rear Wheel Size (in): 18 x 7.5
• Spare Wheel Size (in): 18 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), Overall: 14.7
• Lock to Lock Turns (Steering): 3.5
• Turning Diameter - Curb to Curb (ft): 41.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.5
• Exterior Dimensions
• Wheelbase (in): 116.0
• Length, Overall (in): 173.4
• Width, Max w/o mirrors (in): 73.9
• Height, Overall (in): - TBD -
• Track Width, Front (in): 61.9
• Track Width, Rear (in): 61.9
• Min Ground Clearance (in): 10.2
• Rear Door Opening Height (in): 37.1
• Rear Door Opening Width (in): 58.7
• Liftover Height (in): 31.4
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 44.7
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 86.8
• Cargo Volume to Seat 2 (ft³): 46.4
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 103.9
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 55.8
• Front Hip Room (in): 55.6
• Second Head Room (in): 40.4
• Second Leg Room (in): 37.2
• Second Shoulder Room (in): 56.8
• Second Hip Room (in): 56.7
• Summary
• Vehicle Name: Jeep Wrangler Unlimited
• Body Style: 4 Door
• Emissions
• EPA Greenhouse Gas Score: 3
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.0
